Introduction

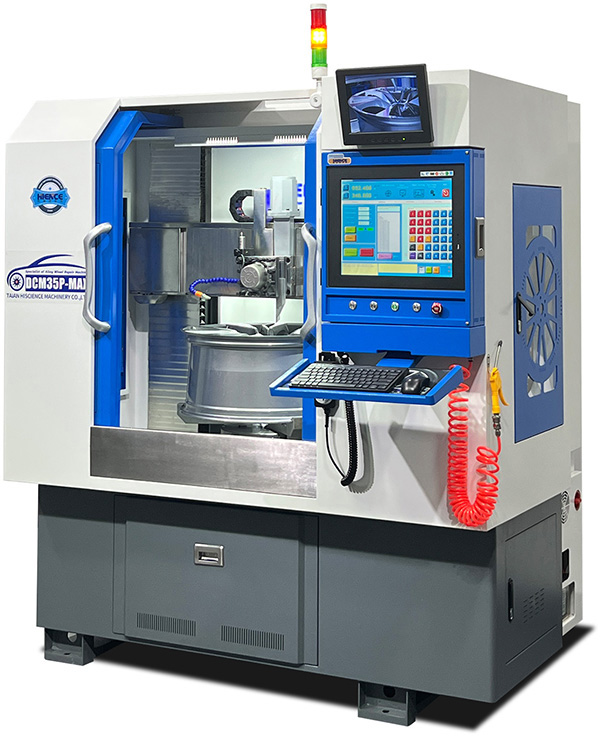

DCM35P-MAX wheel repair machine is a new generation upgraded product with independent intellectual property rights developed by our company. Based on market demand research and feedback from customers who purchased DCM35P-2 before, this product integrates mature product experience, and comprehensively upgrades the cast iron bed structure and X/Z axis structure in design. At the same time, in order to achieve better wheel repair effect and better user experience, DCM35P-MAX adopts higher-end product components and adds more functional modules. DCM35P-MAX reflects its professional quality and craftsmanship from product design, manufacturing process and selection of key components.
Specifications
◉Maximum clamping wheel size: 35 inch
◉Maximum diameter with tire on: 880mm
◉Maximum repairable wheel thickness: 550mm
◉X-axis travel (Diameter): 920mm
◉X-axis drive motor torque: 6NM
◉Z-axis travel: 620mm
◉Z-axis drive motor torque: 6NM×2 (With brake function)
◉Total machine power: 9KW
◉Spindle speed: 50-1800rpm
◉Chuck Diameter / Number of Jaws: 320mm / 3 jaws
◉Tool changer: 4 Station automatic tool changer
◉X/Z feed accuracy: 0.001mm
◉Wheel detection method: Ruby probe detection system (optional laser detection system)
◉Detection accuracy Ruby probe detection: 0.001mm
◉Device Voltage / Frequency: 380V 3ph / 50HZ
◉Customization for different voltages: Support
◉Net weight / Gross Weight: 1500KG / 1650KG
◉Machine size: 1690 × 1180 × 1890 mm
Features
◉Vertical structure, small footprint
◉Only 4 simple steps to repair the wheel, saving time and effort
◉Cast iron bed is high stability. Wheel repair size can up to 32inch
◉PC control system, powerful and easy to operate
◉Add more auxiliary functions to make the operation more comfortable
◉Wheel repairing can achieve mirror surface and rainbow effect
Certificate
CE
CE
